Product Description:
An optical power meter is a highly reliable and precise instrument specifically designed for measuring the optical power levels in fiber networks. This device has a comprehensive power range from +5 to -70 decibels milliwatts and is suitable for various testing and diagnostic applications, ensuring accurate performance in the installation and maintenance of fiber communication systems. Its wide power range enables technicians to confidently measure signals under different fiber types and network configurations, making it an indispensable tool for professionals in telecommunications, data centers, and other fiber environments.

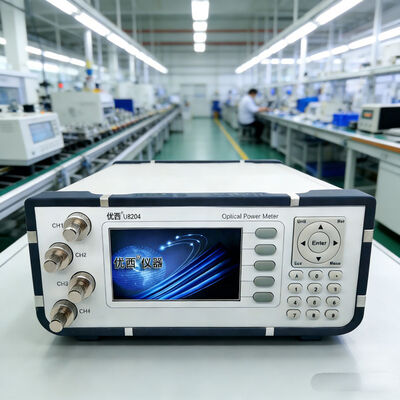

This optical power meter is equipped with a clear and easy-to-read liquid crystal display screen, which enables users to obtain immediate and intuitive feedback on power measurements, thereby enhancing the convenience of use and reducing the error rate during the operation process.
| Model # |
U8204 |
| Number of Channels |
4 |
| Power Range |
+5~ -70dBm |
| Wavelength Range |
850 ~ 1700 nm |
| Calibration Wavelength |
850/908/1270/1290/1310/1330/1510/1530/1550/1570 nm |
| Sampling period |
100 us (10KHz) |
| Application Fiber Type |
Standard SM and MM up to 62.5 um core size |
| AbsoluteUncertainty (accuracy) at reference condition |
± 4% (1200 nm ~ 1610 nm) |
| Relative Uncertainty (accuracy) at reference condition |
＜ 0.02 dB Typical |
| Linearity (power) |
≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm) |
| Return Loss |
＞ 40 dB |
| Operation Temperature |
0 ～ +40℃ |
| Storage Temperature |
-30 ～ +80℃ |
| Recalibration Period |
2 years |
| Dimensions |
245 mm W, 105 mm H, 320 mm D |
| Weight |
2.0 kg |
The U8204 covers a wide wavelength range, making it suitable for testing various fiber optic technologies operating at different wavelengths. Its power supply options, including battery and AC adapter, provide flexibility for both portable fieldwork and stationary lab use. Whether performing routine network maintenance, commissioning new installations, or conducting detailed laboratory measurements, the YOUCii U8202 Optical Power Meter is an indispensable tool for ensuring optimal fiber optic system performance.
